The ViewLux VLX 100 Swing / Entry Door is a modern aluminum single-entry door built around a minimalist frame and a multi-point locking system. It’s the door Orlando homeowners choose when they want clean sightlines, serious structural integrity, and an entry that doesn’t warp in Florida humidity. Juniper Windows Orlando is an authorized ViewLux installation partner, which means you get the factory product, factory-supported warranty coverage, and an installation crew that installs to AAMA standards. Call (850) 679-8554 to talk through your project or schedule a free measurement.

Call (850) 679-8554

Product Overview – VLX 100 Swing / Entry Door

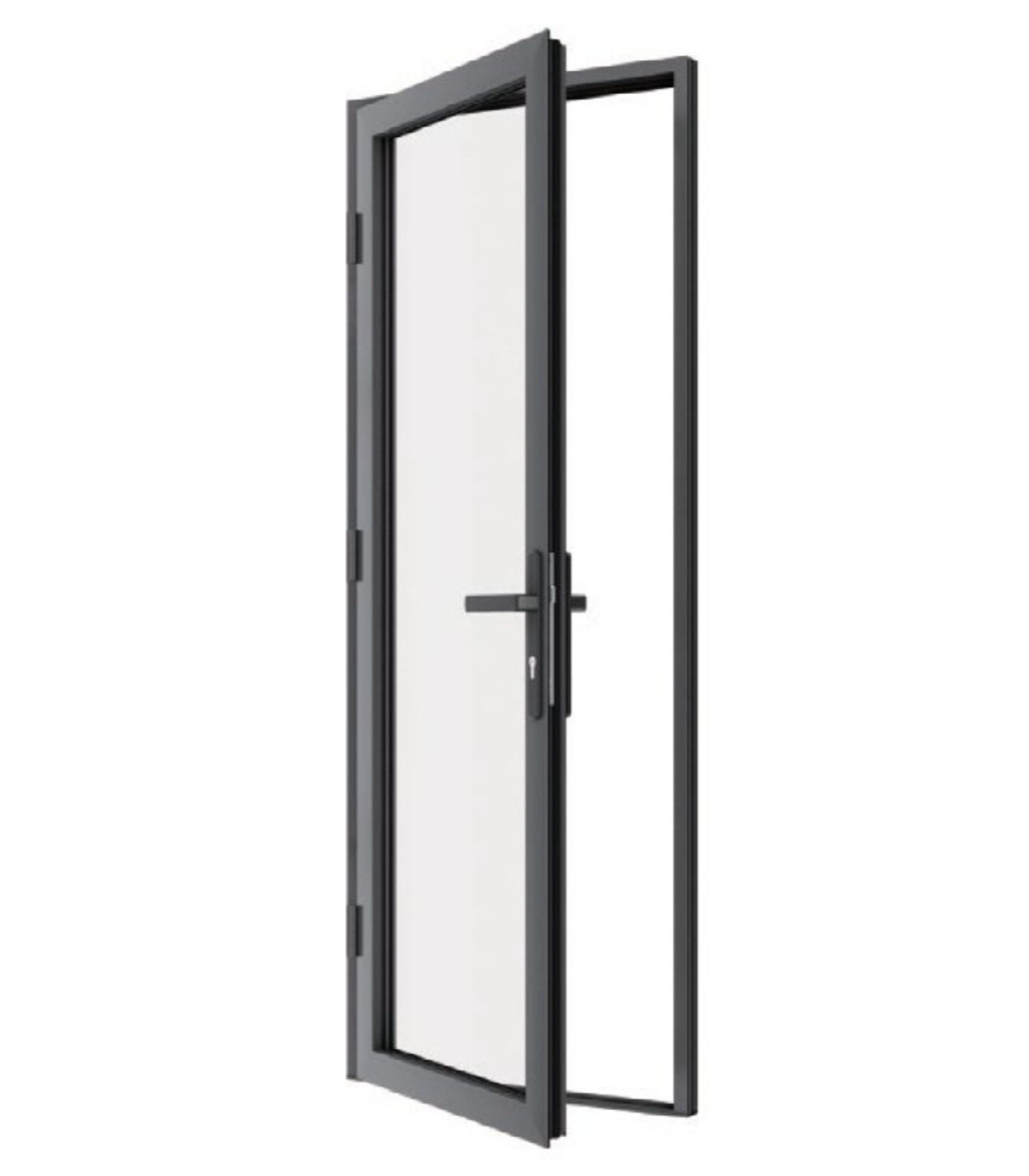

The VLX 100 is a single entry door with a profile width of 2.56 inches, which is slim enough to keep the glass dominant but deep enough to carry real structural load. Buyers gravitate toward this series when they want a front door that reads as architecture, not just an opening. The extrusion wall thickness is 0.098 inches, a gauge that holds its square over decades of daily use and Orlando’s seasonal heat-and-rain cycles. ViewLux engineered this door for contemporary and transitional homes, and it lands especially well on mid-century ranches in College Park, new builds in Lake Nona, and renovated bungalows around Thornton Park.

What separates the VLX 100 from standard builder-grade entry doors is the integration of a multi-point locking mechanism. Instead of a single latch at the handle, the door engages multiple locking points along the frame when you lift the handle or turn the key. That spreads the load and makes forced entry significantly harder. The locking points also pull the slab evenly against the weatherstripping, which improves the airtightness of the whole assembly. For Orlando homeowners who deal with afternoon thunderstorms, pollen season, and the occasional tropical storm warning, that matters.

The aluminum frame is thermally broken, which means the inner and outer sections of the extrusion are separated by a non-conductive material. That break stops heat from traveling through the metal and into your air-conditioned entry hall. For a city where the AC runs nine months a year, that’s not a luxury detail. It’s the difference between a door that feels hot to the touch in August and one that stays room-temperature on the inside. Call (850) 679-8554 if you want to see a sample in person.

Technical Specifications

Here’s the VLX 100 in numbers, reworded the way we explain it to clients at the kitchen table:

• Frame wall thickness: 0.098 inches of extruded aluminum. The extrusion is thick enough to resist racking and denting, which is what you want on a door that faces the street and gets direct sun for half the day.
• Profile width: 2.56 inches. This is the face width of the frame and door stiles. Slim enough for a modern look, wide enough that the hardware and locking points sit fully inside the structure.
• Maximum slab width: up to 48 inches per panel. That gives Orlando buyers room for a true statement entry, and it’s wide enough for moving furniture without needing a double-door arrangement.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, and Laminated. Obscure and frosted are common on doors facing the street, while Low-E tempered and Low-E laminated are the two we quote most in Orlando for their heat control and impact resistance.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. Powder-coated finishes on the first two, anodized on the silver, and wood-grain transfer on the Teak.
• Screen options: Retractable screen or none. The retractable screen hides in the frame when it’s not in use, which keeps the minimalist look intact.

Performance Features

Thermal Efficiency. The VLX 100 uses a thermal break inside the aluminum extrusion, separating the outside face from the inside face. That interruption is what earns the door its NFRC-rated energy performance. In Orlando, where the outdoor temperature can sit in the 90s for months, a thermally broken frame means less heat bleeding into the foyer and less strain on your HVAC. Pair it with Low-E glass and you’ve actually addressed the two biggest heat paths in any entry door.

Acoustic Performance. Aluminum is dense, and when it’s paired with laminated glass, it does real work knocking down outside noise. Orlando homeowners near I-4, Semoran Boulevard, or the airport approaches often tell us street noise was a deciding factor. Laminated glass uses an interlayer that blocks sound frequencies single-pane glass lets right through. The multi-point locking system helps here too, because it compresses the slab into the frame, eliminating the small gaps that leak sound.

Airtightness & Weather Seal. The multi-point lock does double duty as a sealing system. Each locking point pulls the door panel tight against the perimeter gaskets, which means fewer draft paths and less conditioned air escaping. That airtightness is part of what keeps your entry hall from feeling muggy during Orlando’s wet season. Gaps around a door are also gaps in your energy bill, and this door is designed to close those gaps every time you lock it.

Waterproofing. The door assembly is built to keep wind-driven rain on the outside where it belongs. The frame includes drainage paths that channel any water that does get past the outer seal back out through the sill, rather than into your subfloor. That matters in a city that gets 50-plus inches of rain a year. A properly installed VLX 100 won’t let a summer thunderstorm turn your entry rug into a sponge.

Wind Resistance. The VLX 100 is wind-load rated for local climate requirements, which in Central Florida means it’s engineered to handle the gusts that come with afternoon storms and outer bands of hurricanes. The 0.098-inch extrusion wall and the multi-point locking system both contribute here. If you’re in a coastal-adjacent Orlando suburb or just want the peace of mind that comes with an impact-rated door, ask us about the laminated glass option.

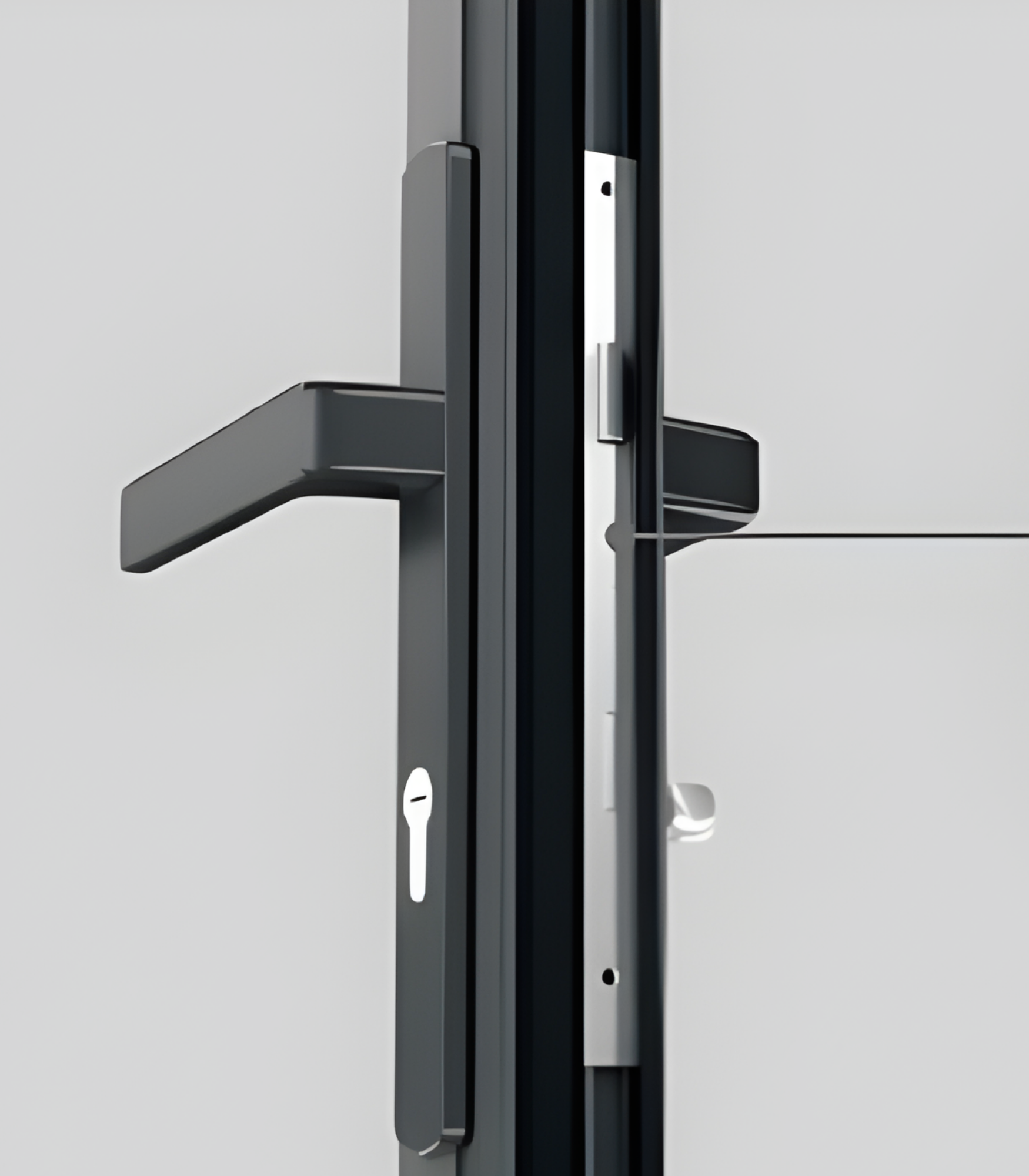

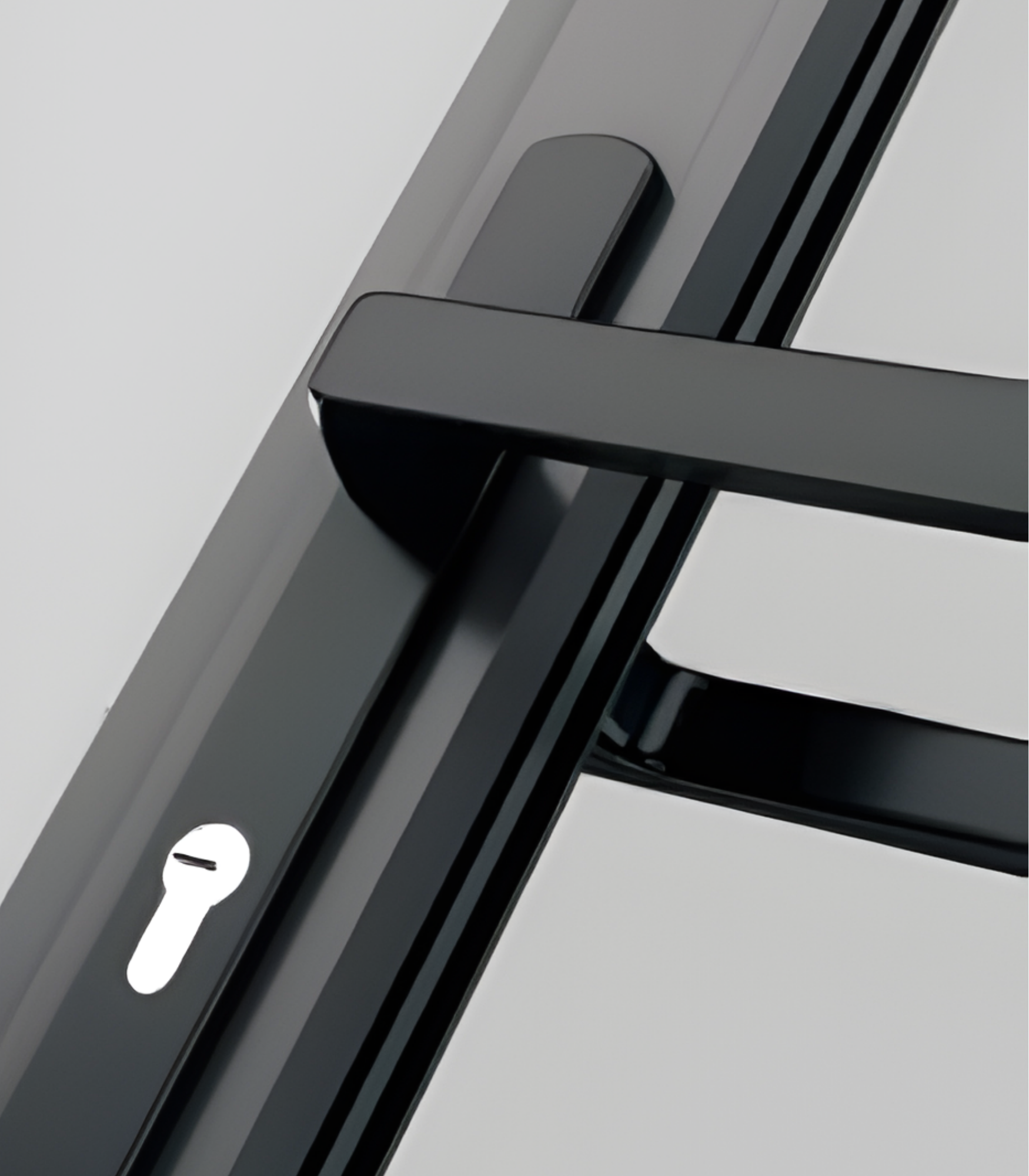

Security & Hardware. The multi-point locking system is the defining security feature of this door. Multiple hook or roller bolts engage the frame simultaneously, which means a burglar can’t simply shim one latch. The hardware is designed for daily use, and because every locking point operates from a single handle or cylinder, you’re not fumbling with extra locks. If you choose laminated glass, you also get glass that resists blows and holds together on impact.

Color & Glass Options

ViewLux offers the VLX 100 in six finishes. Premium Black is the most requested finish we order for Orlando homes, especially on white or light stucco exteriors where the contrast reads as modern. Pure White works well on clean-lined contemporary homes and on renovations where the entry is meant to blend rather than stand out. Anodized Silver gives a metallic, industrial look that pairs nicely with concrete block and glass-heavy facades. Bronze is a warmer alternative to black, popular in Winter Park and elsewhere where earth tones dominate. Champagne is a soft, warm metallic that suits transitional homes. Teak Wood carries a wood-grain finish over the aluminum, which gives you the look of wood without the rot-and-termite concerns that plague real wood doors in Florida’s climate.

Glass choice depends on what you need the door to do. Clear glass maximizes daylight and views, but it puts your entry hall on display. Frosted and Obscure glass give you privacy while still letting in diffused light. Low-E glass adds a coating that reflects heat, and in Orlando it’s almost always worth the upgrade. Tempered glass is safety-rated to crumble rather than shatter into sharp shards. Laminated glass is the impact-resistant option: two layers of glass bonded to an interlayer, so even if it cracks, the pane stays in the frame. For storm-prone areas of Orlando and Orange County, we commonly quote Low-E laminated.

Installation by Juniper Windows Orlando in Orlando

Every VLX 100 we install in Orlando goes through the same process, start to finish. We begin with a pre-install inspection of the existing opening. We check the rough opening dimensions, the condition of the subfloor and king studs, and we look for signs of moisture or rot that would need to be addressed before a new door goes in. If the opening isn’t right, the best door in the world won’t perform, so we don’t skip this step.

We set the frame level, plumb, and square. Those three words matter more than most homeowners realize. A door that’s out of level by an eighth of an inch will bind, leak air, and throw the multi-point locks out of alignment. Our crew uses shims and levels on every install, then anchors the frame to the rough opening per manufacturer and AAMA 2400/2410 installation standards. Every perimeter joint gets AAMA 812 low-expansion foam sealant. That’s the material that keeps water from wicking around the frame and into the wall cavity during Orlando’s heavy downpours. We follow with the interior trim, hardware adjustment, and a full water test before we call the job done. We also haul away the old door and leave the job site clean.

Here’s why the installation step matters as much as the product: an improperly installed door voids the manufacturer’s warranty. We see it too often, doors installed by general handymen or by homeowners who watched a video and tried it themselves. The door goes out of square, the locks bind, the seals fail, and the manufacturer walks away because it wasn’t installed to spec. Juniper Windows Orlando installs to the standards ViewLux requires, which keeps your warranty intact. Call (850) 679-8554 to schedule your free on-site measurement.

Frequently Asked Questions – VLX 100 Swing / Entry Door

What is the lead time for the VLX 100 Swing / Entry Door? Most VLX 100 orders in Orlando run about 3 to 5 weeks from order to delivery, depending on the glass package and finish you choose. Custom finishes and laminated glass can add a week on either end. We’ll give you a firm timeline when we quote the door, and we’ll schedule your install date around it so you’re not left with a missing front door. Call (850) 679-8554 and we’ll walk you through current lead times.

Does the VLX 100 qualify for energy tax credits? The VLX 100 can qualify for energy tax credits when it’s configured with Low-E glass and you save the NFRC documentation from your order. The exact credit amount changes year to year, so we recommend checking with your tax preparer, but the thermal break and Low-E combination is designed to meet the performance thresholds. We’ll provide the paperwork you need at the time of purchase.

What warranty comes with the VLX 100 Swing / Entry Door? The VLX 100 carries a manufacturer’s warranty from ViewLux that covers the frame, finish, and hardware against defects in materials and workmanship. The warranty stays valid only if the door is installed per manufacturer and AAMA standards, which is exactly how Juniper Windows Orlando installs it. We’ll give you the full warranty details in writing before you sign anything.

Can I customize the size of the VLX 100? Yes, within the structural limits of the door. The maximum slab width is 48 inches, and standard heights are configurable for most residential openings. If you have an unusual rough opening, we’ll measure it during the free on-site estimate and tell you what fits. Call (850) 679-8554 and we’ll bring samples and a tape measure.

How do I maintain an aluminum entry door frame in Orlando? Clean the frame and glass with warm water and a mild soap a few times a year, especially after pollen season and after prolonged rain. Avoid abrasive cleaners, which can dull the finish. The anodized finishes need almost nothing beyond that. The powder-coated finishes are also low-maintenance. If you live near salt air on the coast side of Orlando, give the frame a rinse once a quarter to keep airborne salt from sitting on the surface.

Get a Quote – VLX 100 Swing / Entry Door in Orlando

The VLX 100 is a door you’ll live with for decades, and the quote process takes 30 minutes. We’ll measure your opening, talk through glass and finish options, and hand you a written line-item price, no vague ballparks. Call Juniper Windows Orlando at (850) 679-8554 to start your project or schedule a free on-site measurement today.

Written by the team at Juniper Windows Orlando, authorized ViewLux installation partner serving Orlando, FL and surrounding Central Florida communities.
