VLX 138 Panoramic Sliding Door

VLX 138 Panoramic Sliding Door in Orlando, FL | Juniper Windows Orlando

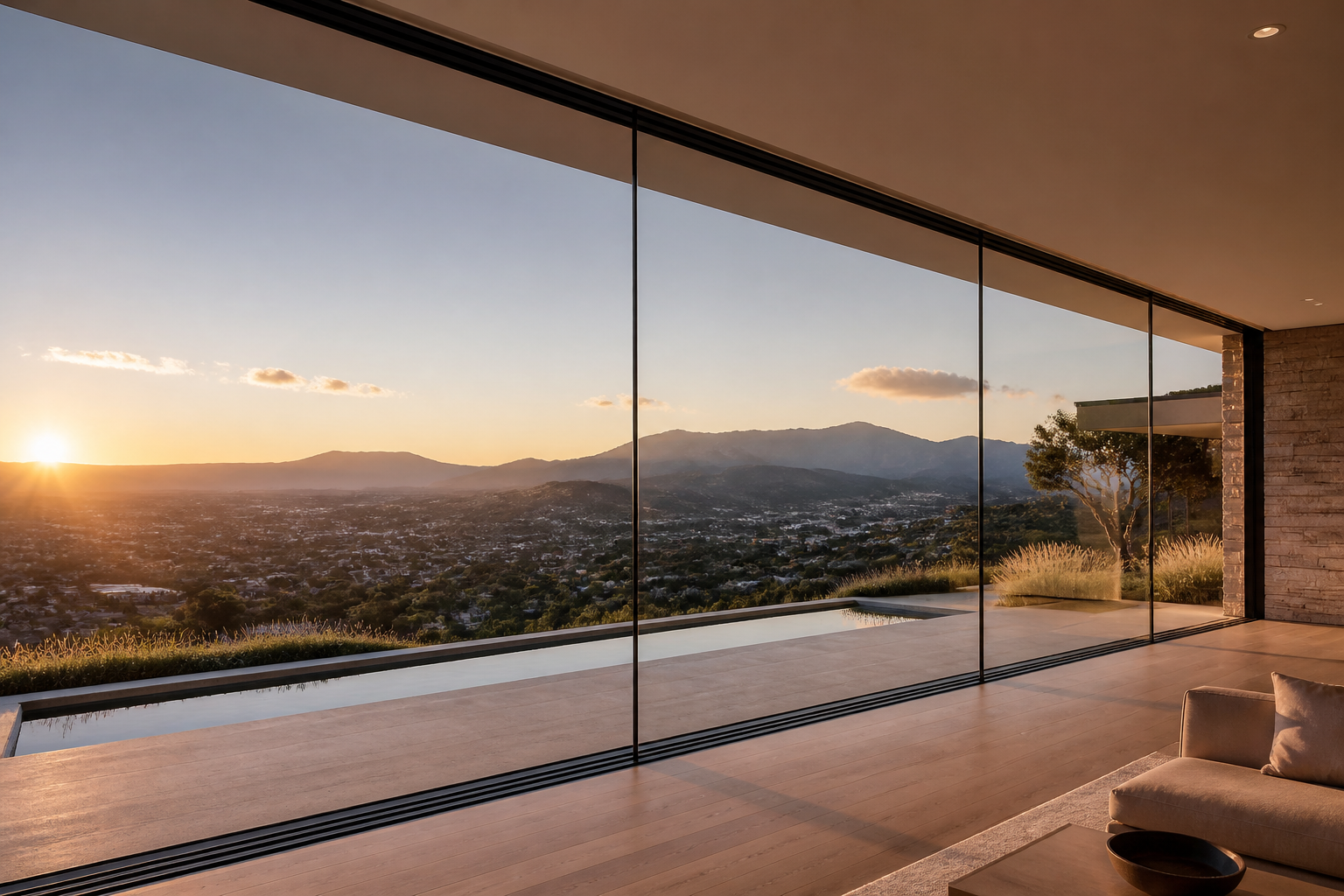

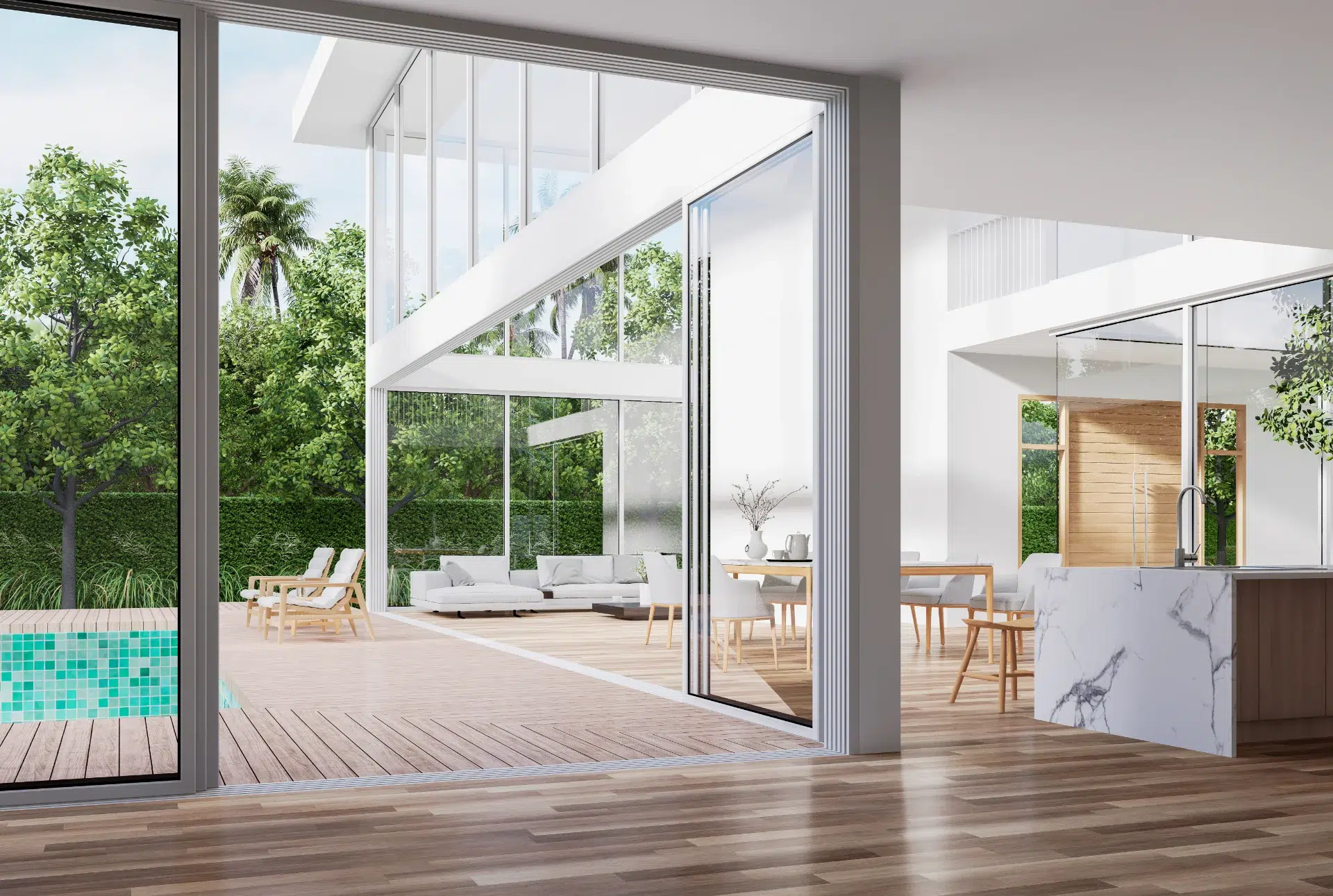

The VLX 138 Panoramic Sliding Door is what you install when you want the wall to disappear. This is a large-span aluminum slider engineered for openings up to 36 feet wide, with glass panels that glide on stainless steel bearings. Our customers in Orlando use it to connect living rooms to patios, dining areas to pool decks, and master suites to morning light. It does one thing better than almost any door we install: it removes the barrier between inside and out. Juniper Windows Orlando is an authorized ViewLux installation partner, which means you get factory-backed product support and locally certified installation under one roof. Call (850) 679-8554 to schedule a free measurement.

Call (850) 679-8554

Product Overview – VLX 138 Panoramic Sliding Door

The VLX 138 is built for people who’ve looked at standard sliding doors and felt underwhelmed. Where a typical patio slider gives you a four-foot opening and a view chopped up by thick frames, this series gives you uninterrupted glass and a track that can span an entire great room. The engineering focus is simple: the narrowest profile that still delivers commercial-grade structural performance. At 1.535 inches wide, the visible frame reads more like a thin line than a wall. The rest is glass.

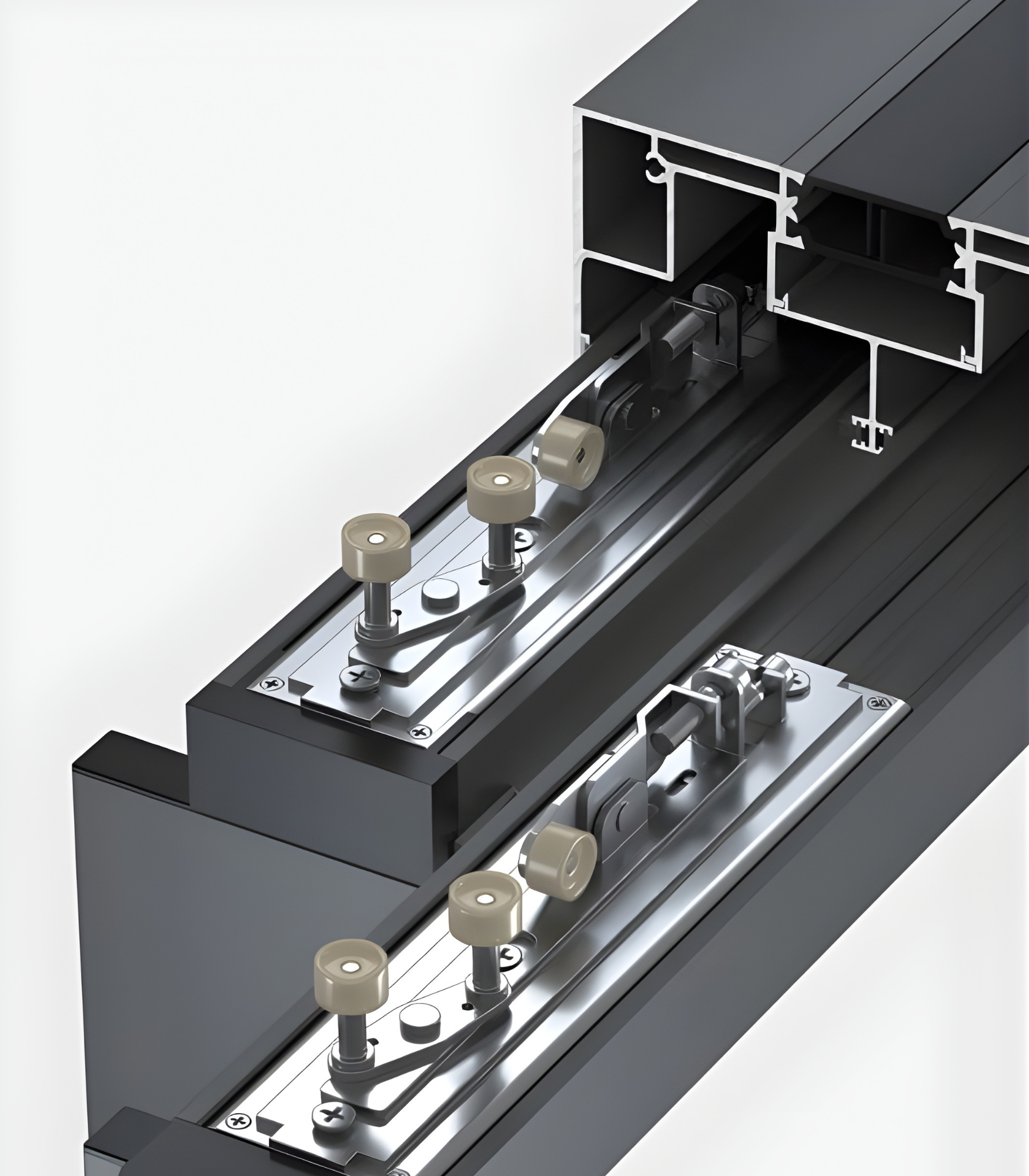

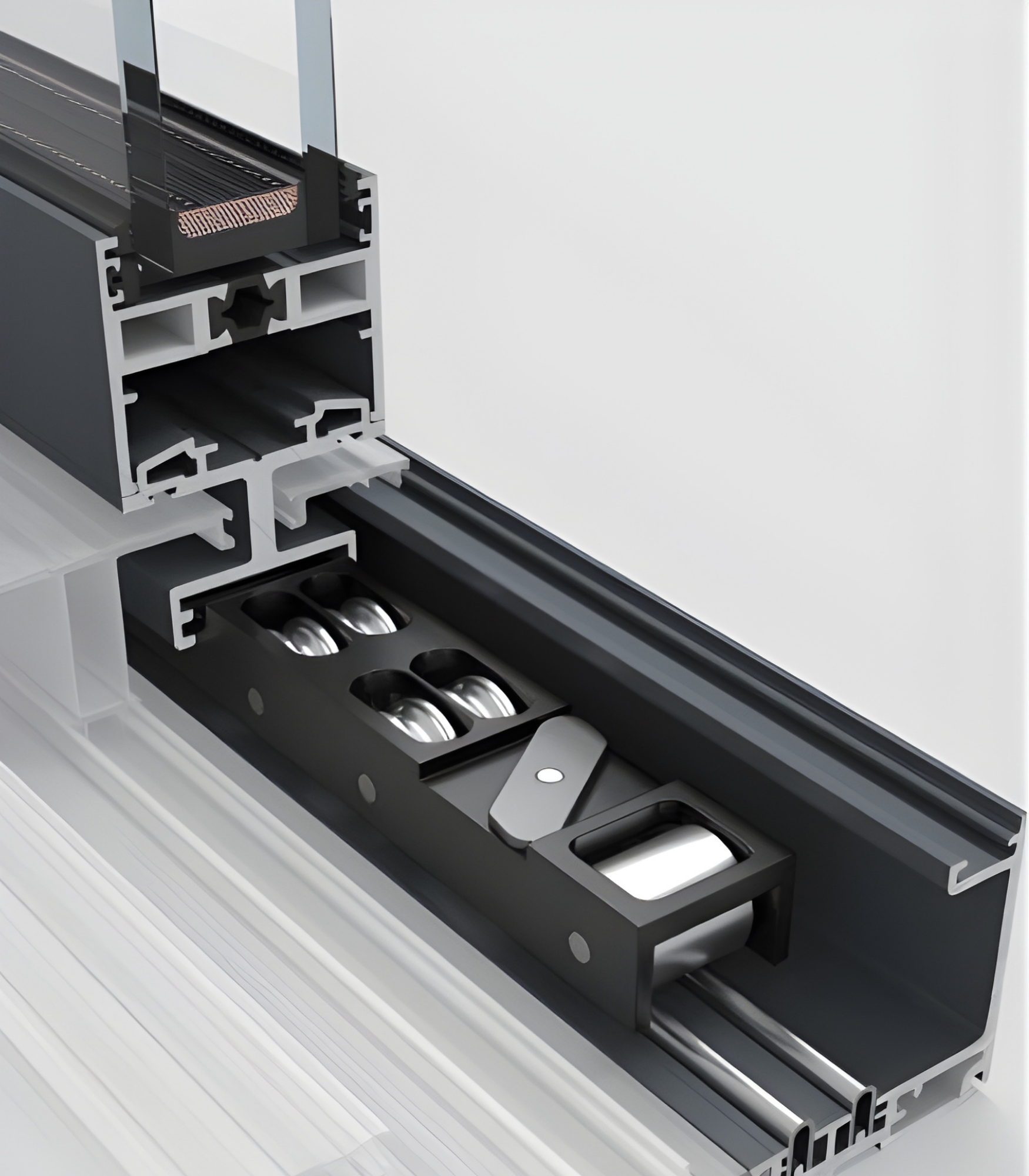

What makes the experience different is the glide. Each panel rides on stainless bearings machined to carry serious weight without resistance. You can push a 400-pound panel with two fingers. That matters in Orlando, where the door between your kitchen and lanai gets opened thirty times a day during the warmer months, or during a cookout when kids are running in and out to the pool. The hardware is designed for repetition.

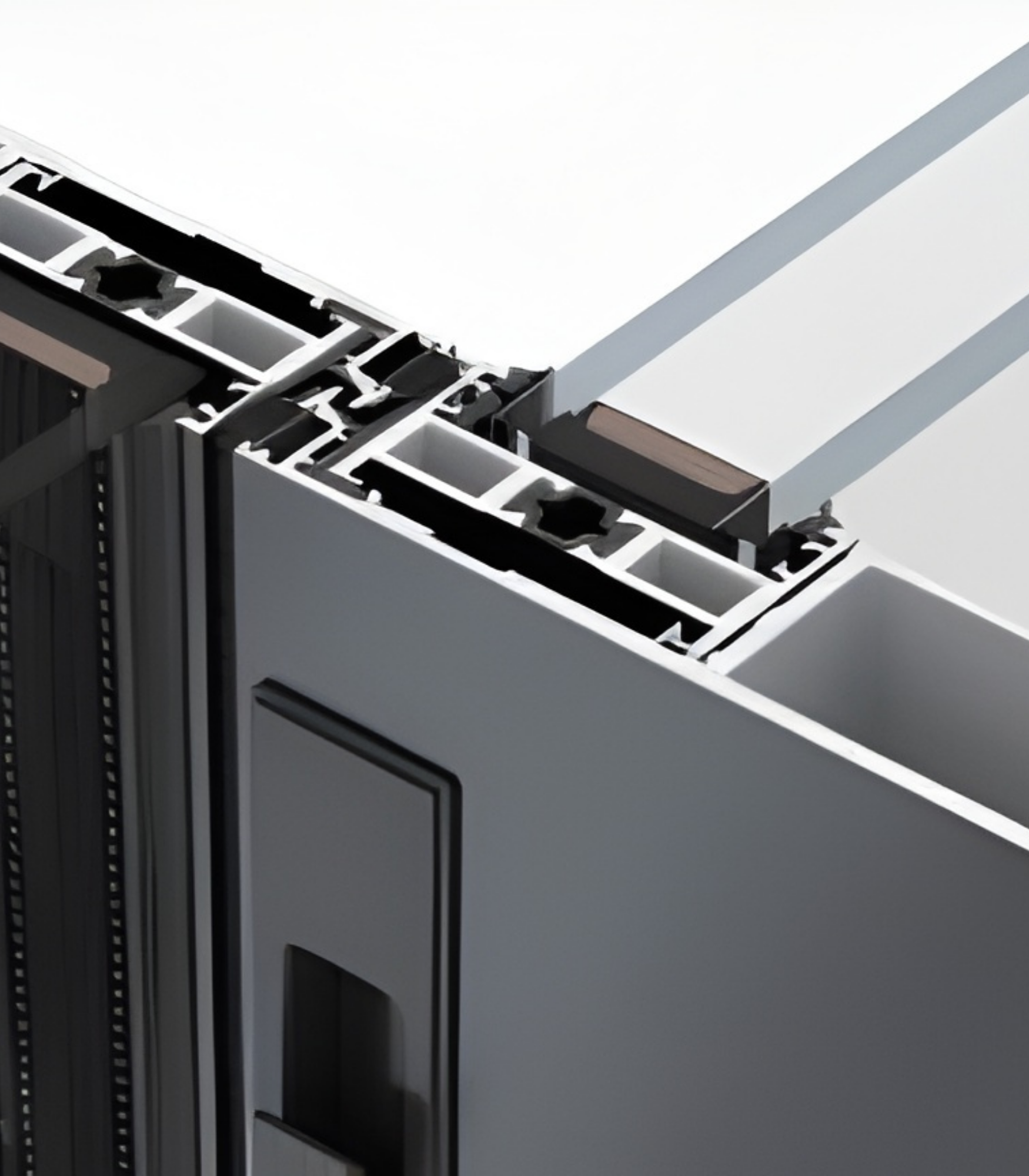

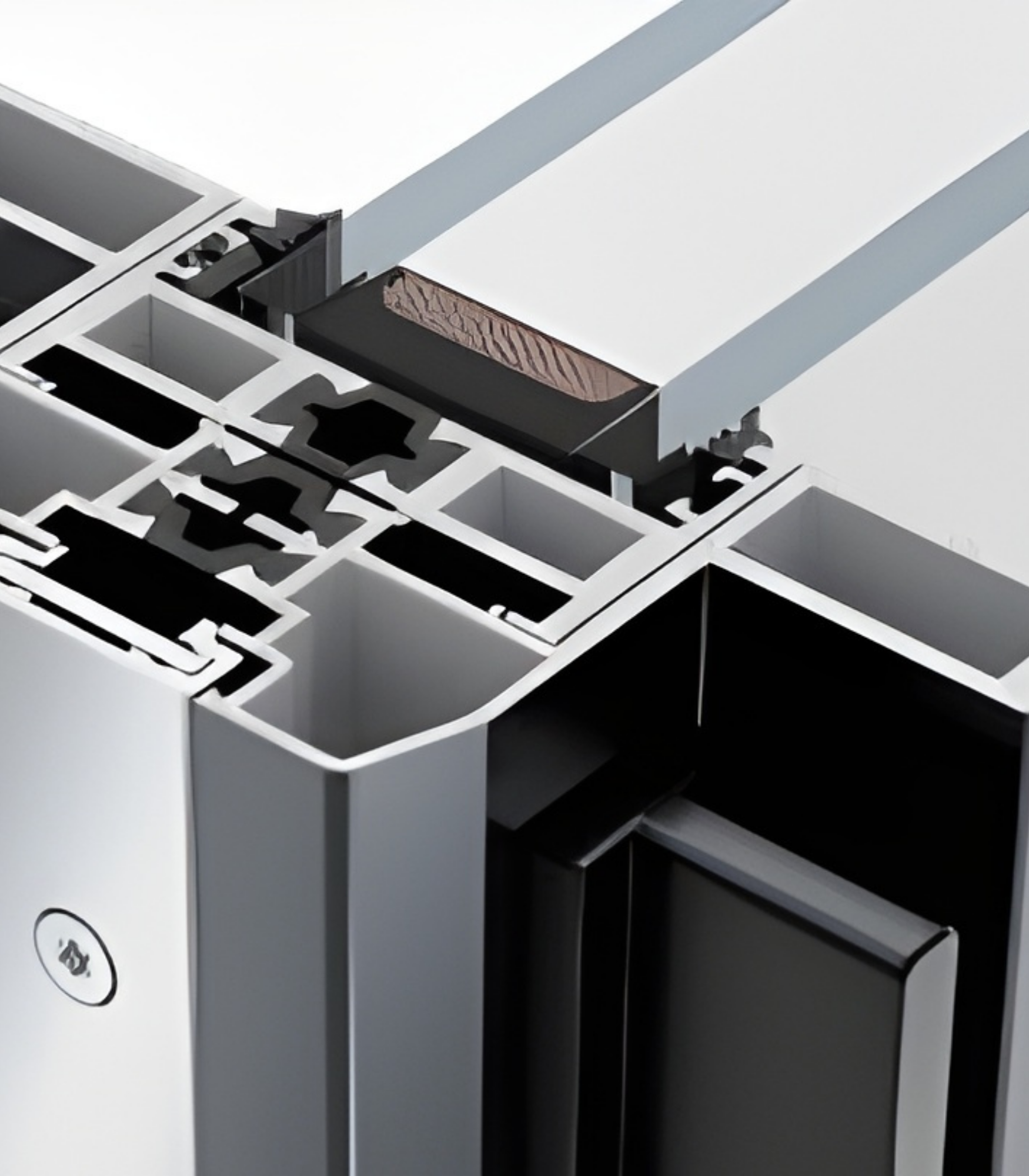

Durability comes from the 0.138-inch wall thickness in the aluminum extrusion. That’s a heavier gauge than you’ll find on entry-level aluminum sliders. It resists flexing, holds its square over decades of thermal cycling, and gives the frame the mass needed for very wide openings without post reinforcement. For Orlando homeowners doing a full remodel or new build, this is the door that lets you put a true see-through wall between conditioned space and the Florida afternoon.

Technical Specifications

• Wall thickness: 0.138-inch aluminum extrusion, heavier gauge for large-span structural stability
• Profile width: 1.535 inches, narrow sightline for panoramas with minimal frame
• Maximum span: Up to 36 feet wide, depending on configuration and wind-load requirements
• Track configurations: 2-Track, 3-Track, and 4-Track available for different opening widths and panel counts
• Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint, and impact-resistant laminated glass for coastal-adjacent Orlando zones
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable Screen, Sliding Screen
• Sill options: Flush Sill, Low-Profile Sill, Recessed Sill

Performance Features

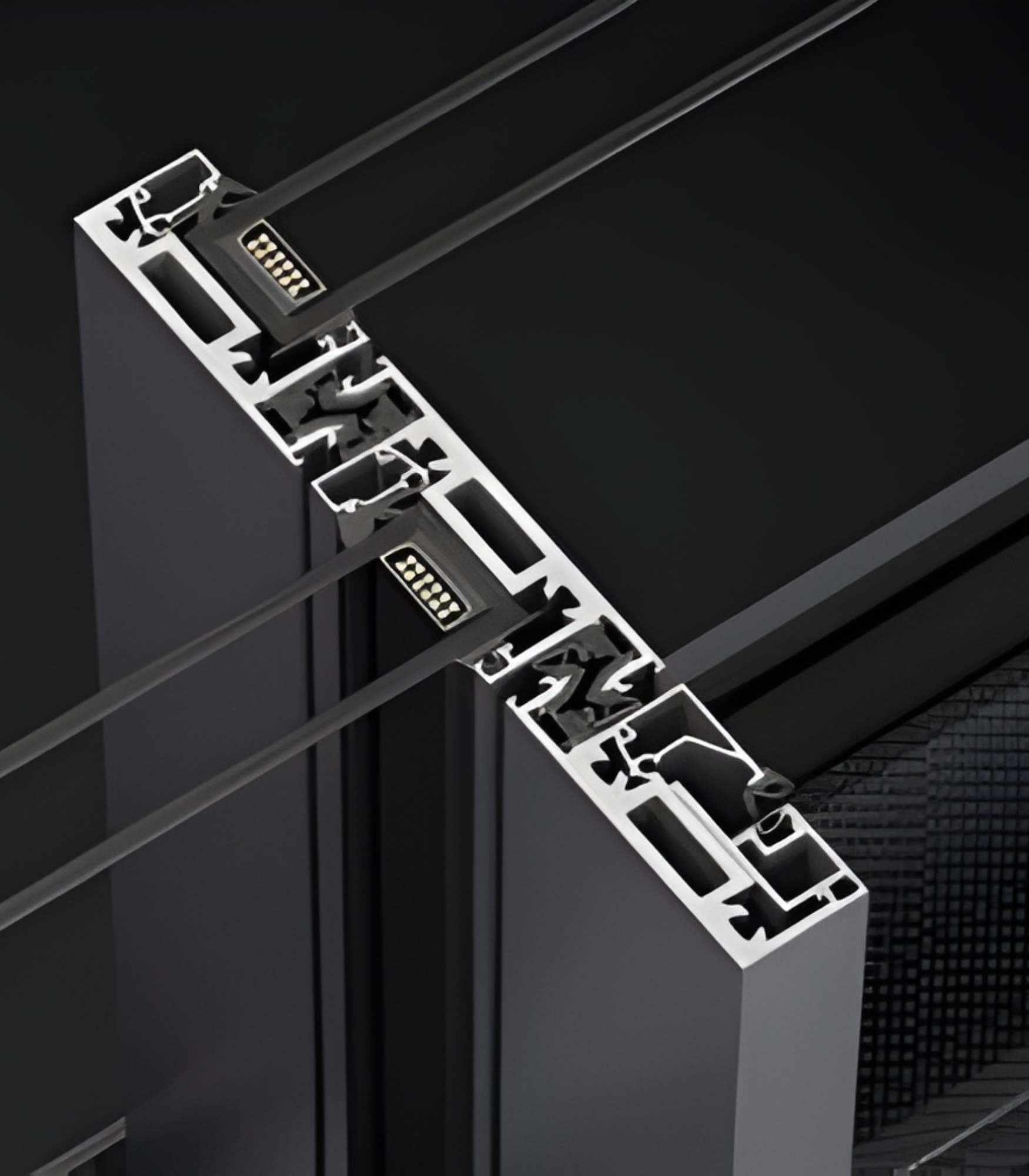

Thermal Efficiency: The VLX 138 uses a thermal break system that separates interior and exterior aluminum to slow heat transfer. When paired with Low-E glass, this door carries NFRC-rated energy performance numbers that make a measurable difference on an Orlando cooling bill from May through October.

Acoustic Performance: The heavier extrusion, tight seal system, and laminated glass options work together to reduce outdoor noise. For homes near I-4, the 408, or busy Orlando intersections, that means a quieter living room even when traffic outside is constant.

Airtightness & Weather Seal: Perimeter gaskets and interlocking panel seals are designed to control air exchange at the seams. Installation per AAMA 2400/2410 standards is where the real-world air tightness gets locked in. A door that tests well in a lab still leaks air if it’s set out of square. Our installers sweat the details.

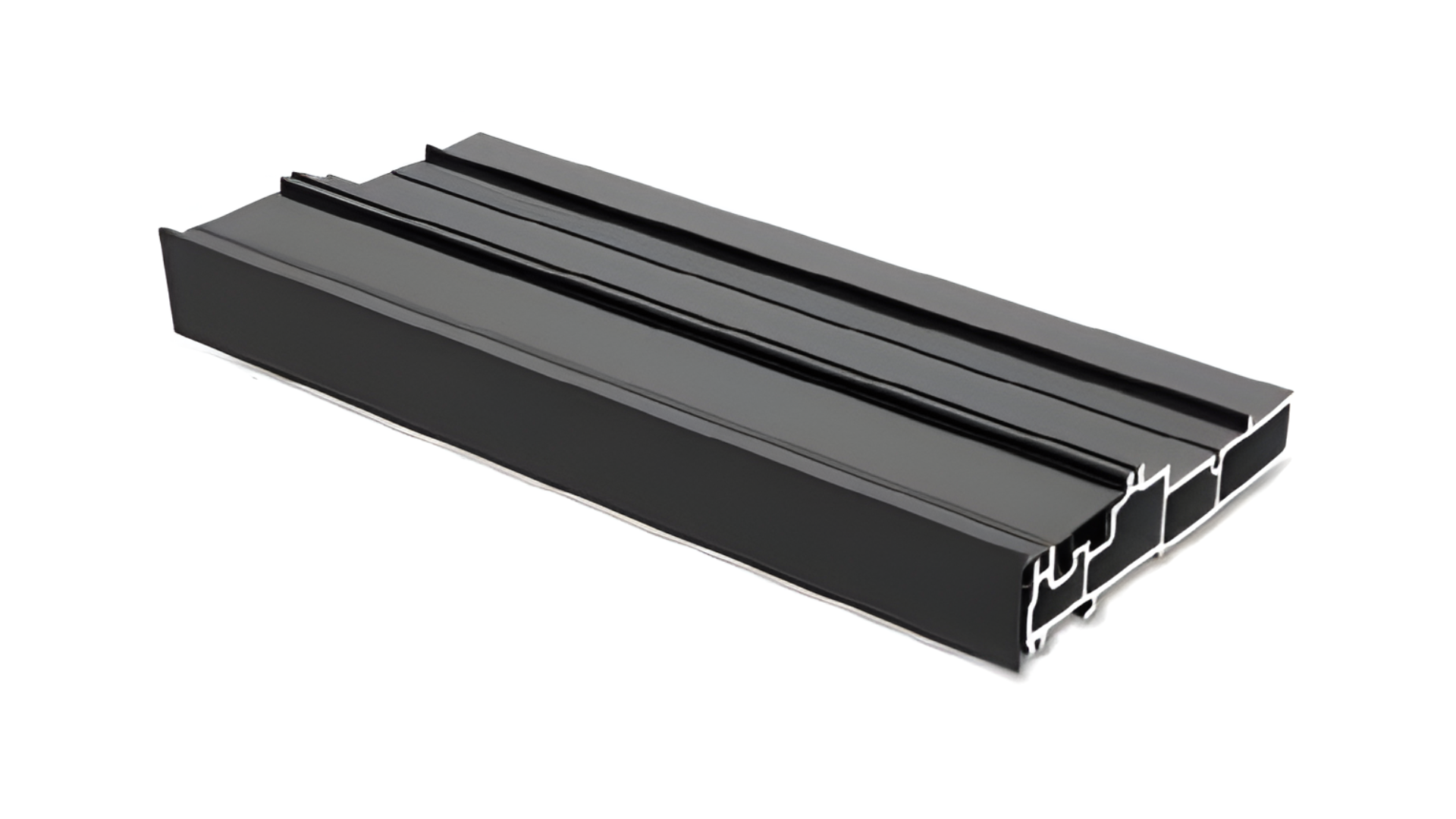

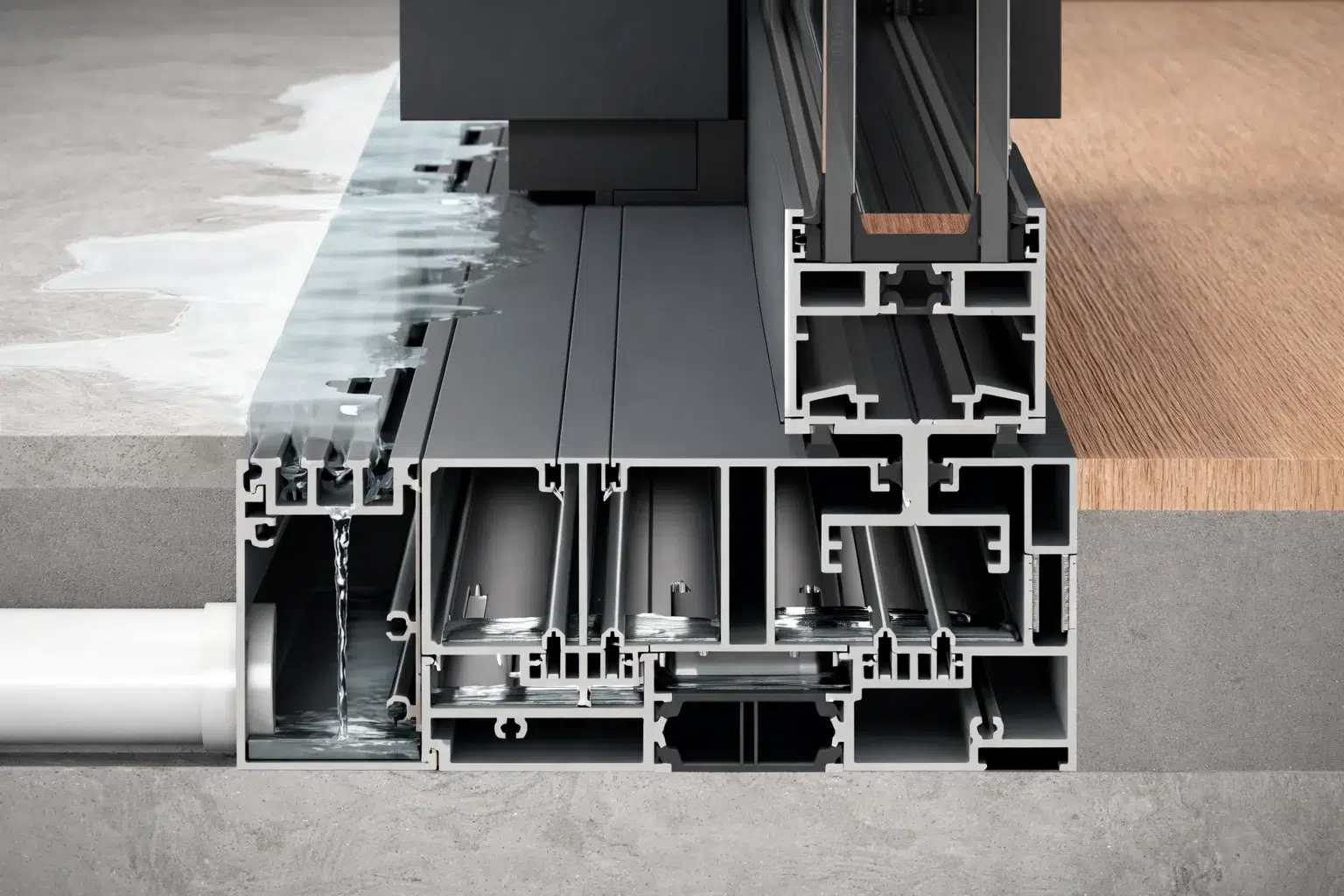

Waterproofing: The track and sill system channels water away from the interior, and the sill options let you choose how much of a barrier you want. Flush sills are great for accessibility and clean lines. Low-profile and recessed sills add more water management for exposed elevations. We seal every perimeter joint with AAMA 812 low-expansion foam during installation, which is a standard a lot of Orlando installers skip.

Wind Resistance: Central Florida gets real wind events. The VLX 138 is wind-load rated for local climate requirements, and the option for impact-resistant laminated glass means you can meet Miami-Dade-style performance standards even in an Orlando zip code where code may not demand it. For a 36-foot opening, that’s meaningful structural engineering.

Security & Hardware: Multi-point locking hardware engages at several points along the panel, not just a single latch. The stainless bearings don’t wear loose over time, so the door doesn’t develop the rattle-and-wobble that old aluminum sliders are known for. This is hardware designed for a door that still operates cleanly fifteen years in.

Color & Glass Options

Premium Black is the finish we see most often in modern Orlando builds, especially in neighborhoods like Baldwin Park or Winter Park where black-frame doors against light stucco has become the default aesthetic. Pure White and Anodized Silver fit traditional Florida architecture. Bronze and Champagne add warmth without going dark. Teak Wood gives you a wood-look aluminum frame, which works well in homes with wood ceilings or Craftsman detailing.

Clear glass is the default for maximum view and maximum light. Low-E is what we recommend for elevations that get direct afternoon sun, which is most west-facing patios in Orlando between 2pm and 6pm. Frosted and Obscure glass give privacy without curtains, commonly ordered for bathrooms, master closets, or a lanai facing a close neighbor. Black Tint and Gray Tint cut glare while keeping a darker exterior look. And for homeowners who want storm protection and UV control, impact-resistant laminated glass is available across all panel sizes.

Installation by Juniper Windows Orlando in Orlando

We’ll be honest: installation quality determines whether a VLX 138 delivers on its promise. A 36-foot slider that’s out of level by even a quarter-inch will bind, leak, or wear out seals prematurely. That’s why our installation process starts before the door ever arrives.

First, we do a pre-installation inspection of the rough opening. In Orlando, that means checking for settling, moisture intrusion, and whether the existing header or lintel can take the load of a wider span. Central Florida soil shifts, and older block construction holds moisture in ways that newer builds don’t. We check.

During installation we set the frame level, plumb, and square using laser equipment, not just a spirit level. Every perimeter joint gets AAMA 812 low-expansion foam sealant. The door is installed to AAMA 2400/2410 standards as required by the manufacturer for warranty-valid work. Once the panels are hung and the hardware is adjusted, we run a water test on the sill and bottom corners, then walk the entire track with you to confirm the glide feels right.

One thing to know: ViewLux warranty coverage depends heavily on proper installation. A door installed by a general handyman who doesn’t follow AAMA standards will likely have claims denied. Juniper Windows Orlando installs every VLX 138 to manufacturer spec, which protects your investment and your warranty. We also handle the heavy lifting: these panels are large and heavy, and setting them safely requires the right equipment and experience.

Frequently Asked Questions – VLX 138 Panoramic Sliding Door

What is the lead time for the VLX 138 Panoramic Sliding Door? Lead time is typically 8 to 12 weeks from final sizing and finish confirmation, depending on glass type and whether you’re ordering impact-rated panels. We recommend starting the process at least 14 weeks before you want the door operational, especially if your Orlando project ties to a pool build or a finished lanai. Call (850) 679-8554 for current lead times.

Does the VLX 138 qualify for energy tax credits? The door carries NFRC ratings, which is the first requirement for any federal energy-efficiency credit program. Whether it qualifies for a specific credit depends on the glass package you choose, the U-factor and SHGC ratings for your climate zone, and program rules the year of installation. A Low-E configuration is your best path. We can pull the specific NFRC numbers for your chosen glass when you request a quote.

What warranty comes with the Panoramic Sliding Door? ViewLux provides a manufacturer warranty on the aluminum frame and glass, and the specific coverage period depends on the product line and glass selection. The warranty is only valid if the door is installed by an authorized partner following AAMA installation standards. Juniper Windows Orlando is an authorized partner, which keeps your warranty intact. Call (850) 679-8554 and we can walk you through what’s covered for the configuration you want.

Can I customize the size of the VLX 138 Panoramic Sliding Door? Yes, sizing is custom per project, up to a maximum span of 36 feet with the right track configuration and wind-load engineering. We measure every opening in Orlando individually. You don’t buy a stock size off a shelf. Track configuration, panel count, glass type, finish, and sill style are all chosen to fit your exact opening and your home’s elevation.

How do I maintain aluminum frames in Orlando’s climate? Wash the aluminum with mild soap and water twice a year to remove salt, pollen, and the fine grit that collects from Orlando’s rainy season. Clean the bottom track regularly to keep the stainless bearings rolling smooth and to prevent debris from clogging drainage channels. Check the gaskets annually for wear, especially on west-facing elevations that get the hardest sun. That’s the whole routine for most homeowners.

Get a Quote – VLX 138 Panoramic Sliding Door in Orlando

If you’re remodeling in Orlando, Winter Park, Baldwin Park, or anywhere across Central Florida, and you want a panoramic slider done right, we’d like to measure your opening and give you a real price. Call (850) 679-8554 to schedule a free on-site measurement and consultation. We’ll talk glass, finish, track configuration, and budget. No obligation, no pressure. Just a straight answer on what this door costs installed in your home.

Written by the team at Juniper Windows Orlando, authorized ViewLux installation partner serving Orlando, FL and surrounding Central Florida communities.
