VLX 100 Bifold / Folding Door

VLX 100 Bifold / Folding Door in Orlando, FL | Juniper Windows Orlando

The VLX 100 bifold door turns an ordinary wall into a 20-foot-wide opening that folds away panel by panel. If you’ve ever wanted your Orlando living room to flow straight onto a lanai, pool deck, or back patio without a post or pillar breaking the view, this is the product that does it. Juniper Windows Orlando is an authorized ViewLux installation partner, which means you get factory-backed product support and a local crew that installs these doors to AAMA standards every month across Orange County. Call (850) 679-8554 to talk specs, pricing, or a free on-site measurement.

Call (850) 679-8554

Product Overview – VLX 100 Bifold / Folding Door

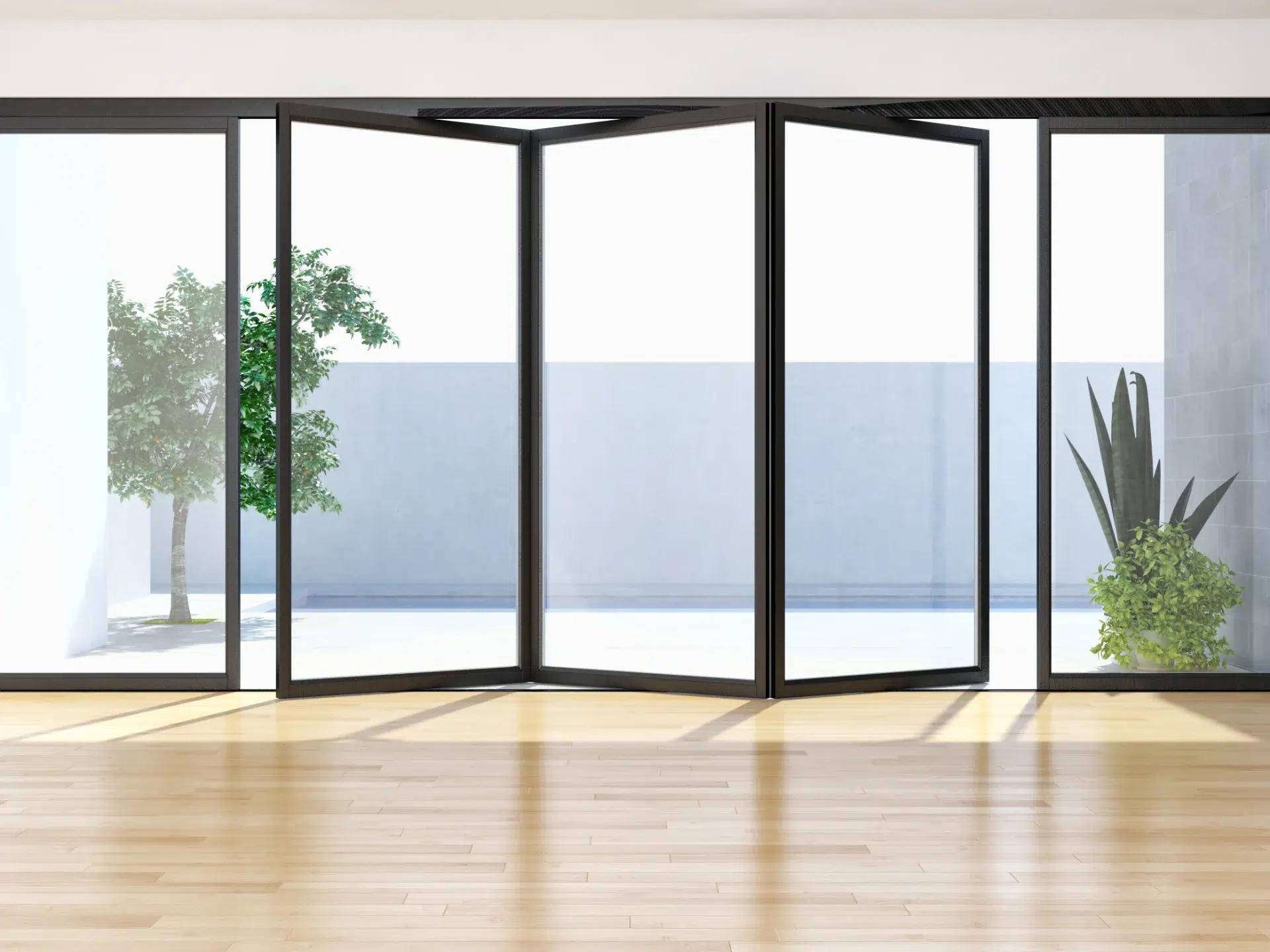

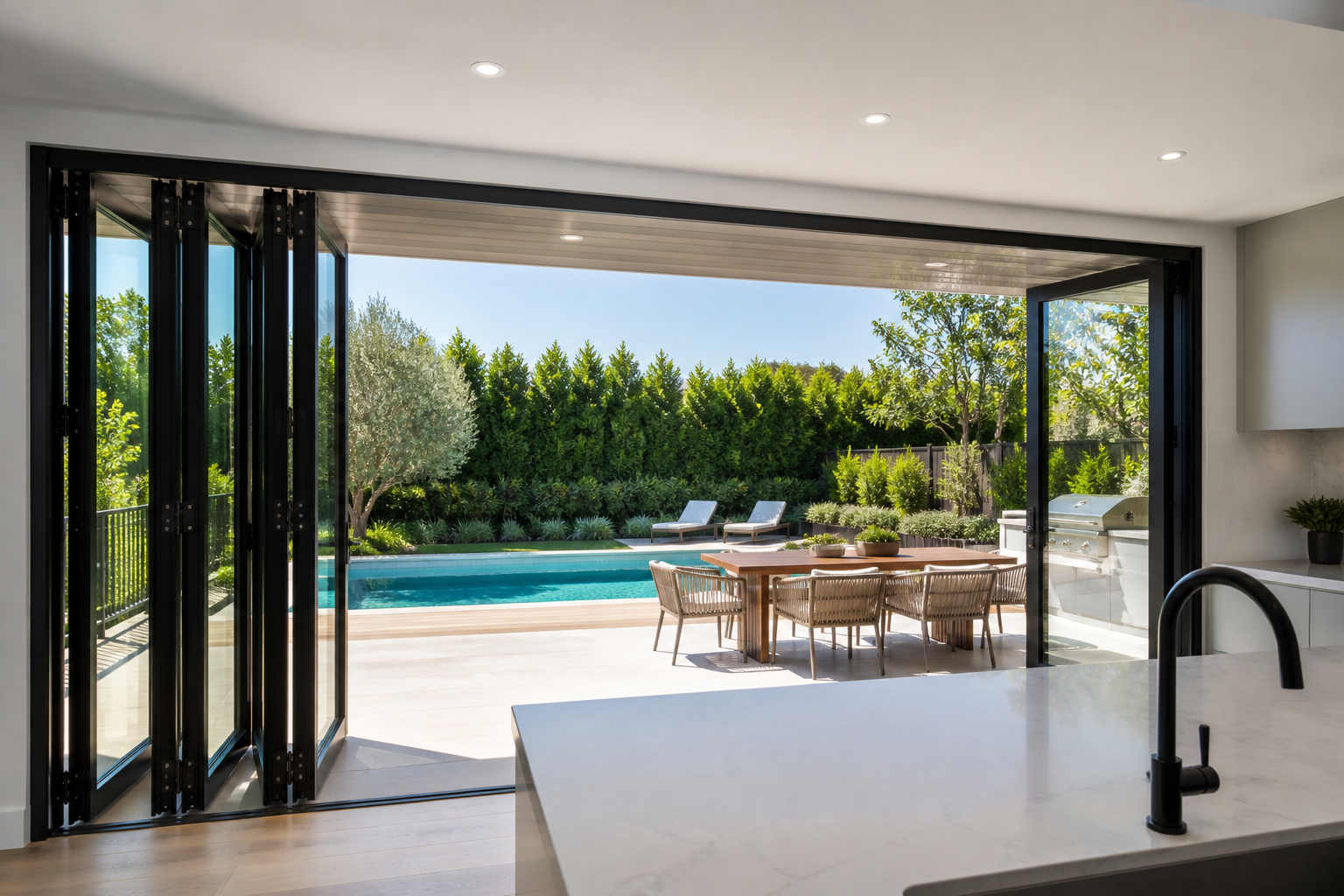

The VLX 100 is an accordion-style aluminum folding door built around one idea: when it’s open, the wall essentially disappears. Panels stack flat against each other at the jamb, giving you somewhere between 85 and 90 percent of the framed opening as actual pass-through space. Compare that to a sliding glass door, where one panel always blocks half the opening, and the difference is obvious the first time you host a cookout and people move freely between the kitchen and the pool deck.

Architecturally, this series fits two Orlando home styles particularly well. On mid-century and modern ranch homes in neighborhoods like College Park or Winter Park, the slim 2.56-inch profile width keeps sightlines clean and lets the glass do the work. On newer builds in Lake Nona or Baldwin Park where indoor-outdoor living is the default assumption, the VLX 100 is often written into the plans from day one. But we’ve also retrofitted these into 1980s stucco homes in Conway and Dr. Phillips where the original slider felt cramped and dark.

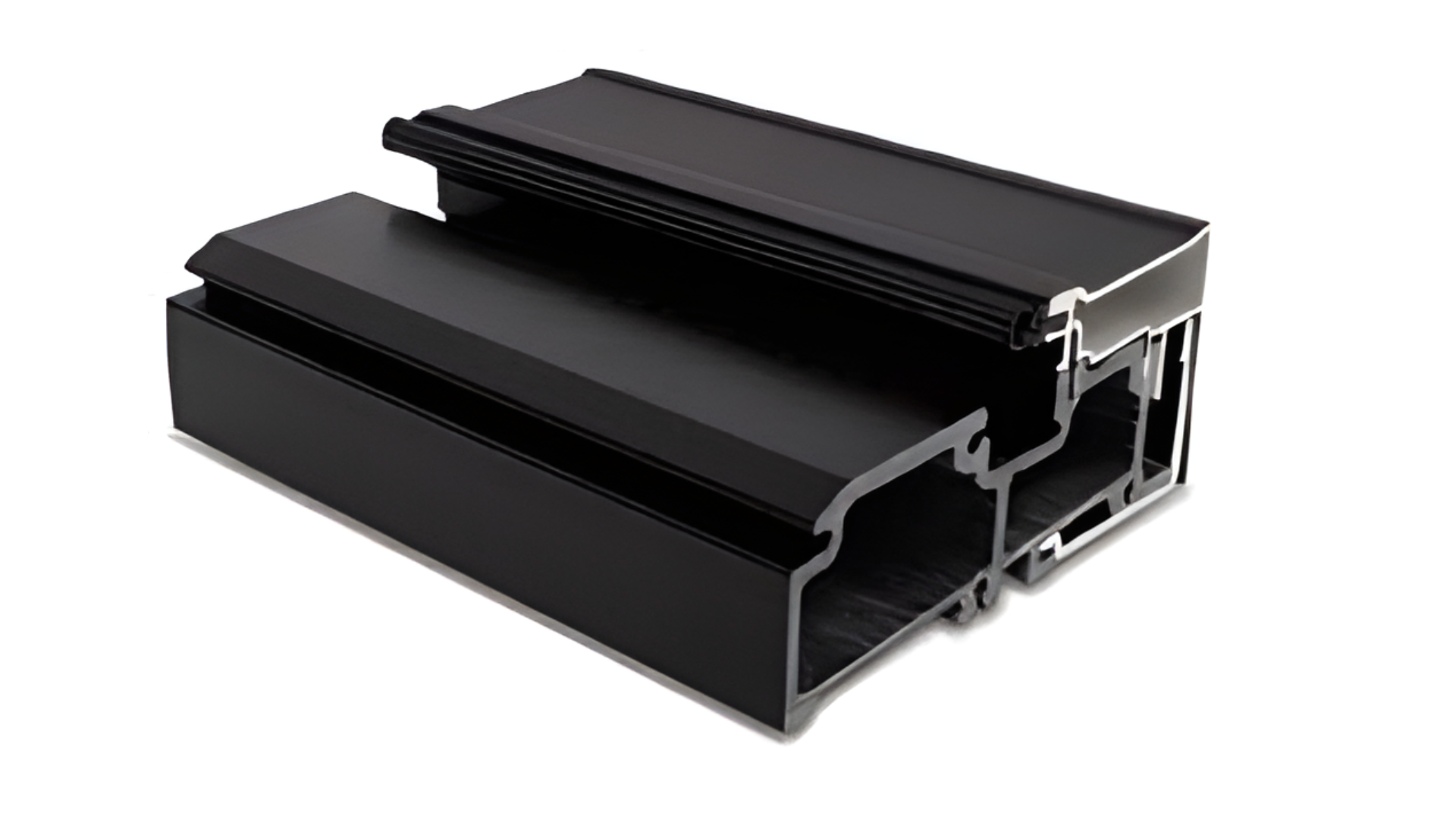

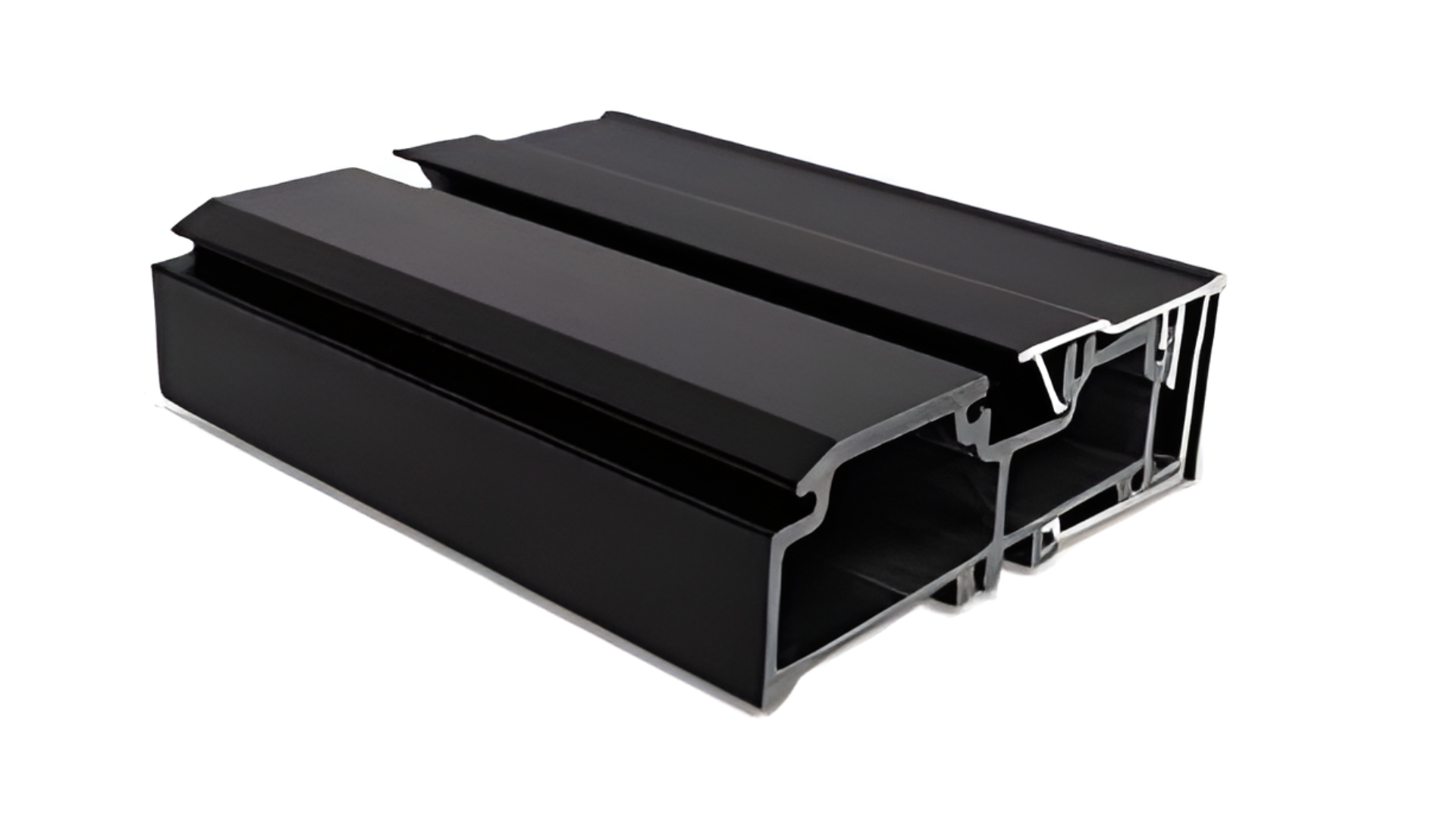

The frame is aluminum, which matters in Orlando’s humidity. Aluminum doesn’t swell, warp, or absorb moisture the way wood or vinyl-hybrid frames do, and it holds its geometry through a hundred summer thunderstorms. The 0.098-inch wall thickness gives the extrusion enough rigidity to carry a six-panel stack without sagging at the header. Buyers choose this series over lighter folding doors when they want something that still operates smoothly after ten years of daily use, not just at the showroom.

Technical Specifications

Here’s what the VLX 100 brings to the table, in plain terms. We’d rather you know exactly what you’re pricing before we send a quote.

• Frame wall thickness: 0.098 inches. This is a heavier extrusion than entry-level folding doors, and you feel it when you operate the panels.
• Profile width: 2.56 inches at the interlock. Slim enough for unobstructed glass area, wide enough for structural integrity.
• Maximum span: Up to 20 feet of clear opening, depending on panel count and wind-load requirements for your specific Orlando location.
• Panel configurations: 2-panel, 3-panel, 4-panel, 5-panel, and 6-panel tracks. Panel count changes stack depth, so we’ll talk through what works in your wall space.
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, and Black Tint.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
• Screen options: Retractable screen or no screen. The retractable version disappears into the jamb when you don’t need it, which Orlando buyers appreciate during mosquito season.
• Performance ratings: NFRC-rated thermal performance via thermal break technology, AAMA 2400/2410 installation compliance, and wind-load ratings matched to Florida Building Code requirements for the Orlando area.

Performance Features

Thermal Efficiency

The VLX 100 uses a thermal break between the interior and exterior aluminum surfaces. That break interrupts the conductive path that would otherwise pull heat into your air-conditioned space. Pair the thermal break with Low-E glass and the NFRC-rated assembly keeps your Orlando cooling bills from spiking every time the afternoon sun hits that west-facing wall.

Acoustic Performance

Aluminum with a wider air cavity and laminated glass does a solid job of knocking down exterior noise. If you live near Conway Road, Semoran, or any of the busier corridors in Orlando where traffic hum is constant, the laminated glass option is worth every dollar. You’ll still hear a motorcycle at full throttle, but the background drone fades.

Airtightness & Weather Seal

Every panel interlock and threshold on the VLX 100 carries a compression gasket system, and Juniper Windows Orlando seals the perimeter with AAMA 812 low-expansion foam at installation. That combination is what prevents the air leaks you feel around cheap slider tracks, and it keeps conditioned air inside where it belongs.

Waterproofing

Orlando gets roughly 52 inches of rain a year, often wind-driven. The VLX 100’s sill design channels water outward, and our installers water-test every bifold after installation. We’ve seen too many folding doors installed by general contractors who skip the sill flashing, and the first summer storm soaks the living room floor. We don’t let that happen.

Wind Resistance

Folding doors catch a lot of wind when they’re closed. The VLX 100 is engineered and installed to meet wind-load requirements under the Florida Building Code for Orlando’s exposure ratings. Impact-resistant laminated glass is available if you want the added assurance of storm-grade glazing without changing the frame system.

Security & Hardware

Multi-point locking at the main panel, reinforced hinge assemblies, and a track system that resists lifting from the outside. The hardware is concealed where possible, so you’re not staring at a row of bulky handles when the door is closed. It locks like a door, not like an afterthought.

Color & Glass Options

The VLX 100 comes in six finishes, and the right choice depends on your home’s architecture. Premium Black is the most requested finish in Orlando right now; it frames the glass like a picture window and reads as intentional on both modern and updated ranch homes. Pure White works well on traditional Florida homes in areas like Thornton Park and Delaney Park, where the frame should blend with existing white trim rather than contrast it. Anodized Silver and Bronze give you a classic aluminum look that wears well and hides fingerprints. Champagne is a warmer metallic that pairs nicely with cream and beige exteriors, particularly on older custom builds. Teak Wood is a wood-grain finish that gives you the warmth of timber without the maintenance, and it’s a smart pick if your Orlando home has wood-look ceilings or cabinetry nearby that you want to echo.

On the glass side, Clear is the budget baseline. Low-E adds a transparent metallic coating that reflects heat while staying visually clear, and it’s our default recommendation for any south-facing or west-facing opening in Orlando. Tempered glass is safety-rated and often required by code for doors and low glazing near walking surfaces. Laminated glass sandwiches a plastic interlayer between two panes, which improves impact resistance and sound control; it’s the option we recommend most for storm-conscious buyers and anyone near a noisy street. Gray Tint and Black Tint reduce glare and solar gain, which matters if your opening faces the afternoon sun and you don’t want to close blinds all day.

Installation by Juniper Windows Orlando in Orlando

Here’s the thing about bifold doors: the product is only as good as the installation. A VLX 100 that’s installed out of level will bind, drag, or refuse to latch, and the manufacturer warranty won’t cover a door that was installed wrong. That’s the risk with hiring a general contractor who installs one folding door a year. We install these doors week in and week out across Orlando and the surrounding area, and we follow a process that protects the product and your home.

Every installation starts with a pre-install inspection of the opening. We check the rough opening dimensions against the ordered panel sizes, verify the header is adequate for the span, and confirm the substrate at the sill is sound. Then we set the frame level, plumb, and square using shims and anchors appropriate for your wall construction; concrete block homes in Orlando need different fastening than wood-frame homes in Winter Garden or Oviedo, and we stock hardware for both. The perimeter gets sealed with AAMA 812 low-expansion foam, which fills gaps without exerting pressure on the frame, and the exterior gets flashed and caulked to shed water. We install to AAMA 2400/2410 standards, which covers the full sequence from anchoring through sealing and operational checkout.

Before we leave, we run the door through its full travel several times, adjust the hinges and carriers if needed, and water-test the sill. Then we clean the glass, walk you through operation and maintenance, and hand you the paperwork. The whole install typically takes one to two days depending on panel count and site conditions, and we treat your home like it’s our own. No debris, no shortcuts, no mystery charges.

Frequently Asked Questions – VLX 100 Bifold / Folding Door

Get a Quote – VLX 100 Bifold / Folding Door in Orlando

If you’re pricing a bifold door for your Orlando home, let’s make it easy. Call (850) 679-8554 and we’ll schedule a free on-site measurement, walk through panel configurations and glass options, and give you a written line-item quote with fixed pricing. No showroom games, no vague ranges. You’ll know exactly what it costs before you commit. We install the VLX 100 across Orlando, Winter Park, Dr. Phillips, Lake Nona, and all of Orange County.

Written by the team at Juniper Windows Orlando, authorized ViewLux installation partner serving Orlando, FL.
